Apartment W_G+BETON ARCH.625
2016-07-30 02:00
架构师提供的文本描述。现代建筑的光和纪念碑的同时,内部是舒适和技术先进。空间是为人类创造的,而人则是对空间的补充。这是对60年建筑的现代诠释,包括我们时代的所有先进技术。
Text description provided by the architects. Modern architecture of light and monumental at the same time , the interior is comfortable and technologically advanced.. Space was created for man and man complements the space. this Modern interpretation of the architecture of the 60 years including all advanced technologies of our time.

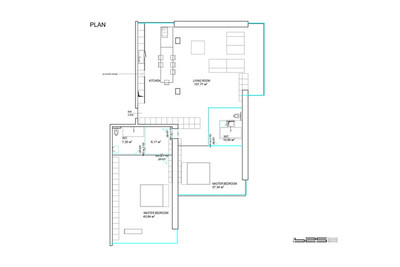

Floor Plan
现代建筑师的工作是隐藏一切技术和功能,为人创造背景和舒适。正确稀释流动,给出空间转换的可能性、不同的生活场景、透明的、随功能变化的流动空间和隔离的可能性。这是生活的下一个层次,设计这样一个空间需要解决许多问题。
The work of the modern architect is to conceal all technologies and functions , create the background and the comfort to the person. correctly dilute flows . To give the possibility of transformation of space, different life scene, transparent , flowing space with change of function and the possibility of isolation. .This is the next level of life and designing such a space requires the solution of many problems.
© Ilya Egorkin
Ilya Egorkin
-如果你的建筑会引起情绪,那么你就是一个好的建筑师。对我来说,新保守主义和现代主义-主要的领域。在室内,尽管所有这些风格都与舒适和温暖相结合,但还是很难做到极简主义。在建筑中创造自己的风格是建筑师发展的最高境界。
– If your architecture causes emotions, then you are a good architect. For me neopotism and modernism – the main areas. In the interior it is hard minimalism, despite the fact that all these styles are combined with comfort and warmth. To create your own style in architecture is the highest point of development of the architect.
-只有天然材料-木柚木和橡木,石头,混凝土和500米玻璃作为一个统一的空间与自然,白色指甲油作为背景为一个人。这些材料是创造了简单的形式,纪念碑和光在同一时间。
– Only natural materials – wood TEAK and OAK, stone, CONCRETE and 500 M glass as a unifying space with nature, the white nail Polish as a background for a person. These materials are created simple forms, monumental and light at the same time.
© Ilya Egorkin
Ilya Egorkin
技术在进步,建筑采用创新,允许在一个全新的层次上进行设计。同时,也有样本在设计中,这是百年来,但他们仍然在趋势。另一个例子:最近在室内有粗石板和生谷仓板。一方面,这是一个新的趋势,另一方面,木材和石材,一直以来。纵观人类历史,是主要的建筑材料,其他一切都是妥协。
Technology is advancing, the architecture uses innovation, allowing to design on a whole new level. At the same time there are samples in the design, which for a hundred years, but they remain in the trend. Another example: recently in the interiors is practiced rough stone and raw barn Board. On the one hand, this is a new trend, on the other, the wood and stone materials that have always been. Throughout the history of mankind is the main building materials, everything else is a compromise.
© Ilya Egorkin
Ilya Egorkin
创造有趣的内部,寻找最佳的组合技术,材料,形状,颜色和功能。无论这种内部,私人还是公共的,不管目的是什么,它是重要的温暖,舒适和舒适的感觉。不然的话,人们就不想参与其中了。当时建筑的许多风格和趋势都是错误的,但无论如何,一个好的内部环境是永恒的,它在任何时代都是相关的。内心是你想去的地方,内心的情感,同时它只是一个人的背景。
To create interesting interior to find the optimal combination of technologies, materials, shapes, colors and functions. And whatever this interior, private or public, regardless of the purpose it is important feeling of warmth, comfort and coziness. Otherwise people will not want to be in it. With many styles and trends in architecture of the time shows errors, but in any case, a good interior is timeless, it is relevant in any era. The interior is where you want to be, the interior emotions and at the same time it is only the background for a person.
© Ilya Egorkin
Ilya Egorkin
内部可能是过时的。比这容易得多,活得更久的机会就越多。它将永远保持现代,在这种情况下,必须说服自己,因为内部,这是建筑师.这并不难。或者说根本没有时间.。大负荷是不允许支付和可能的寓言和含沙射影的因素使这个地方,所以它是什么,更有趣的是,未来的项目.
The interior can be out of style. And than it is easier, the more chances to live longer. it will always remain modern, in this case had to persuade themselves , because the interior which is architect... And it wasn't hard. or to put it simply didn't have time... big load is not allowed to pay and possibly elements of allegory and innuendo make this place so what it is, is still more interesting is the project that come...
© Ilya Egorkin
Ilya Egorkin
该布局是线性的,离散的和流动的玻璃的壁,具有隔离幕的可能性。铝轨使织物非常容易滑动,另外,百叶窗确实改善了PASCAL(PA)和分贝(dB)中的图表光谱混合压力和频率,因为树的声(低频)低于20dB,因此分贝(dB)是低的两倍。钢化玻璃12mm,隔声指数RW(C;CTR)=40(-2;-5)对于低频噪声的住宅空间具有非常可接受的性能:隔声指数RWCTR40-5=35dB,用于高频噪声:隔声指数RWC40-2=38dB。用于安装特殊施工铝型材。它充满了在整个结构中传播声能的吸声材料。现代技术已经将玻璃隔断特性与砖墙隔离。
The layout is linear, the discrete and flow into each other, walls of tempered glass, with the possibility of isolation curtains. Aluminum rails make it very easy to slide textiles, additionally, the blinds really improve the graph spectral mixing pressure and frequency in Pascals (PA) and decibels (dB) is twice as low as the rustle of the trees (low frequency) is below 20 dB... Toughened glass 12 mm, with sound insulation index Rw(C; Ctr) = 40 (-2; -5) has a very acceptable performance for residential spaces For low-frequency noise: the sound insulation index Rw + Ctr 40 – 5 = 35 dB For high frequency noise: the sound insulation index Rw + C 40 – 2 = 38 dB. Used for mounting aluminum profile of special construction. It is filled with sound-absorbing materials that propagate sound energy throughout the structure. Modern technology has leveled the glass partition properties insulation with a brick wall.
© Ilya Egorkin
Ilya Egorkin
也是由橱柜和架子制成的部件制成的扁桃体。液体聚合物地板白色是唯一的背景加热,作为地板加热在寒冷时期,在-15°C范围内,与Radicioni和气候系统。
Also tonirovanie from parts made by cabinets and shelves.screens. Liquid polymer flooring white is the only background heating, as Underfloor heating dogreat premises in cold period in the range from -15 ° C along with radicioni and the climate system.
客厅采用模块化沙发,100%为天然亚麻布,由ARCH.625设计,可能改造为看电视,可能是对晚茶的惩罚,可能是睡觉的地方,可能是自发的转变,我们对构图的改变越大。对布局和空间的厌倦程度越小。客厅的两个侧面是全景窗口,还有两个其他存储空间。整个墙面都是带有白色马特漆正面的厨房,带有系统提示式、全延伸机构、厨房高度3100мм和前宽8m-13柜,宽0.6米。位于洗涤池前面1200 mm两台冰箱的后面,是一台洗碗机,用于低地下室厨房使用的模型-平衡铰链,有一个移位的旋转中心,洗衣机和烘干机。在唯一有微波功能的烤箱的正面,密尔。.在前部二极管灯的上方,一个装有滚刀的窗户岛。中心成分:表ETHNICRAFT切片3200х1100 mm无涂层柚木阵列。比利时。
Living room with modular sofa 100% natural Linen were made to designs by ARCH.625 possible transformation for watching TV , perhaps a penalty for evening tea, possible sleeping place, a possible spontaneous transformation, the more we change the composition. the less tired of the layout and space. 2 sides of the living room is panoramic Windows, and 2 other storage. The entire wall is the kitchen with front facades in white Matt lacquer with the system TIP-ON, full extension mechanism , the height of the kitchen 3100мм and front width 8 m - 13 cabinets by 0.6 m .located behind the front of the sink 1200mm two refrigerators , a dishwasher for low basement kitchen use model -Balancing hinges Hinges with a displaced center of rotation, a washing machine and dryer. on the facade of the only Oven with microwave function, MIELE. .Over the front diode lights., a window island with hob. The center of the composition: table ETHNICRAFT Slice 3200х1100 mm array of teak without any coating. Belgium.
© Ilya Egorkin
Ilya Egorkin
公寓的另一部分有一间卧室,周边有8米大的全景窗,架子和橡树岛床,还有玻璃背设计ARCH.625。当然,这些材料和形式重复了起居室,以白色为背景,玻璃一方面与外部的连接,另一方面与浴缸的连接,然后到公共房间,一棵树,橡木在这里扮演重音和其他背景的角色。玻璃浴室俯瞰卧室的侧面,而且非常明亮和开放,一般来说,它是卧室的一部分。如果您需要隐私,那么您可以关上窗帘和锁门…
Another part of the apartment has a bedroom with a large panoramic Windows of 8 meters on the perimeter , shelves and island bed of Oak, with glass back design ARCH.625 . the materials and forms of course repeat living-room with white as the background , the glass on the one hand the connection with the exterior and on the other hand the connection with the bath and then to a common room, a tree, where the oak plays the role of accent and all the rest of the background .Glass bathroom overlooks the side of the bedroom and is also very bright and open, in General, it is part of the bedroom. If you need privacy, then you can close the curtains and lock the door.....
© Ilya Egorkin
Ilya Egorkin
照明最小的20产品线的公司XAL,6000开尔文白色中性。铝型材15毫米Rall 9006和白色扩散器。线被分成组和区域的周长和垂直照明柱和墙壁。尽管灯光只位于周边相当多的区域,我们在起居室和厨房已经达到450到500勒克斯的数字,而在卧室和浴室的标准是OK LK 250和400。所有的灯光通过无线电通道从公寓的不同点控制,此外,所有的灯具都是可调光的。此外,所有房间都配备了运动感应器和灯具,毕竟,5W是舒适生活所必需的,玻璃传递光线和所有场景并移动规划的需要,也许这是现代生活空间透明设计中最困难的部分。
Lighting MINIMAL 20 PRODUCT LINE of the company XAL , , 6000 Kelvin white neutral. aluminum profile 15 mm RALL 9006 and white diffuser. Lines are divided into groups and zones of the perimeter and vertical lighting on the columns and walls. despite the fact that the light is located only on the perimeter quite a lot of areas we have reached the figures of 450-500 Lux in the living room and the kitchen, while the norm SNiP OK LK 250 and 400 in the bedrooms and the bathroom. All light control via radio channel from different points of the apartment, in addition, all luminaires are dimmable. additionally all rooms are equipped with motion sensors and lamps, 5 W's necessary for a comfortable life after all, glass transmits light and all the scenes and move the need to plan, perhaps this is the most difficult part of the transparent design of modern living spaces.
Architects ARCH.625
Location Moscow, Russia
Category Apartment Interiors
Architect in Charge Sergey Nasedkin, Natalia Nasedkina
Area 230.0 sqm
Project Year 2016
Photographs Ilya Egorkin
