工料测量师Jesús Gangas工料测量师(竞赛)Miguel A.Palencia结构设计Juan F.de la Torre(EUTECA SL)设施PROYECTA SL建筑公司Fernández Rosillo SL制造商装货.多规格少规格

Quantity Surveyor Jesús Gangas Quantity Surveyor (Contest) Miguel A. Palencia Structural Design Juan F. De la Torre (EUTECA SL) Facilities PROYECTA SL Construction Company Fernández Rosillo SL Manufacturers Loading... More Specs Less Specs

 © Montse Zamorano

.Montse Zamorano

架构师提供的文本描述。在Reinosa的社区中心，IMPLUVIUM是一个大的屋顶，由一层木材结构建成。其部件在现场进行了工业化和组装，取代了一个在火灾后被拆除的前市场。屋顶，连同从地面产生的四个盒子，是必要的基础设施，允许许多事件发生，无论是自发的还是在同一天花板下的程序。

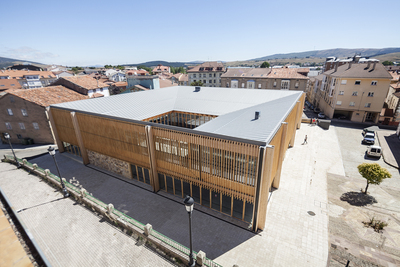

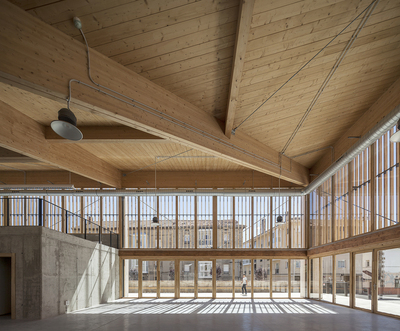

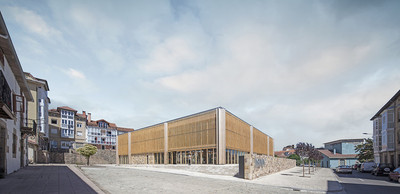

Text description provided by the architects. Community Center in Reinosa IMPLUVIUM is a large roof built with a laminated timber structure. Its components were industrialized and assembled on site, replacing a former market demolished after a fire. The roof, together with four boxes that arise from the ground, is the necessary infrastructure that allows many events to happen, both spontaneous and programmed under the same ceiling.

 © Montse Zamorano

.Montse Zamorano

 Exploded View

 © Montse Zamorano

.Montse Zamorano

社区中心的平方规划是由上述盒子和庭院的战略位置来组织的，这使得室内空间两极分化。院落在地面上形成不同的尺度空间。此外，它的地板降低和移动与玻璃外壳有关，在夏季在遮阳的休息区外产生，以及在冬天通过窗户接收直接阳光的相邻长凳。

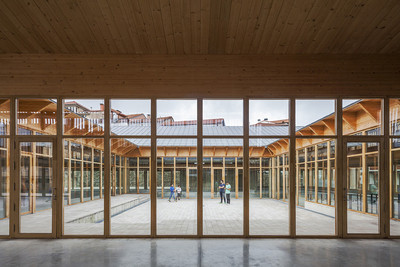

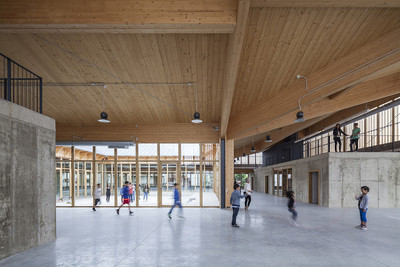

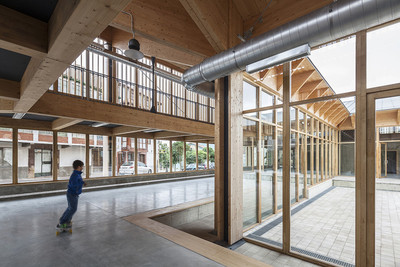

The squared plan of the Community Center is organized by the strategic location of the mentioned boxes and a courtyard that polarized the interior space. The courtyard is decentered to generate different scale spaces in the ground level. Also, its floor is lowered and moved in relation with the glass enclosure generating outside shaded sitting areas for the summer time and an inside adjacent bench that receives the direct sunlight through the windows during the winter.

 © Montse Zamorano

.Montse Zamorano

一楼与南面的场地层相连，将公共空间向内延伸，并在视觉上将整幢大楼与街道连接起来。此外，在部分使用的策略允许引入一个阁楼悬挂在主要结构和提供更高的隐私空间。它在周边的位置创造了一个更个性化的平面布局，利用自然光线，被环绕在建筑物周围的木制格子过滤。

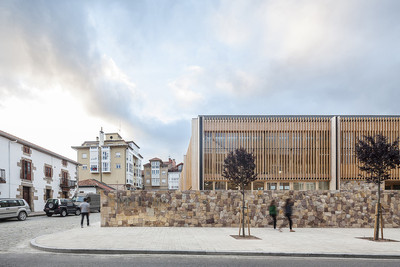

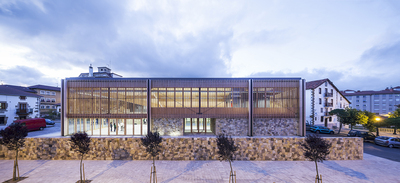

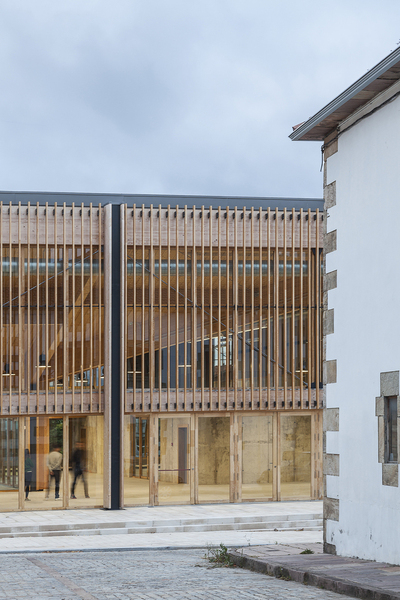

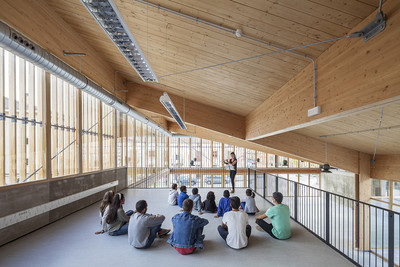

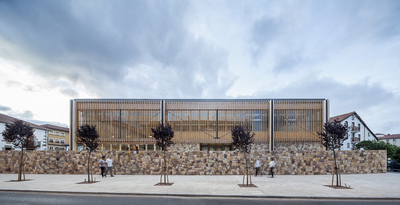

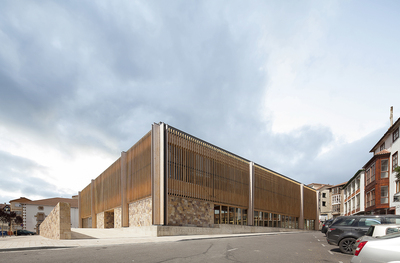

The ground floor is in continuity with the site level on the South, extending the public space towards the inside and connecting visually the whole building with the street. In addition, the strategy used in section allows the introduction of a mezzanine that hung from the main structure and offers higher privacy spaces. Its location in the perimeter creates a lineal layout for the plan with a more individual scale, taking advantage of the natural light, filtered by the wooden lattice that surrounds the building.

 © Montse Zamorano

.Montse Zamorano

 © Montse Zamorano

.Montse Zamorano

不同的特殊情况，在院子里，周围的空间或在建筑物的前面，产生了很大的灵活性使用，而不失去不同场景的特殊性。

The variety of particular situations, in and by the courtyard, around the space or in front of the building, generates a great flexibility of use without loosing the specificity of the different scenarios.

 © Montse Zamorano

.Montse Zamorano

Architects RAW/deAbajoGarcia

Location Reinosa, Cantabria, Spain

Category Adaptive Reuse

Author Architects Begoña de Abajo, Carlos García

Collaborator Architect Antonio Rincón

Area 1500.0 m2

Project Year 2017

Photographs Montse Zamorano

Manufacturers Loading...
