架构师提供的文本描述。该项目战略上位于塞蒂亚市的商业中心。这是大约5年前建造的非常成功的第一个会议中心的第二阶段。

Text description provided by the architects. This project is strategically located in the commercial hub of Setia City. It is the second phase to the highly successful first convention centre that was constructed some 5 years ago.

 © H. Lin Ho

C.H.LinHo

该地点位于中央公园的正面，以方便公园内的露天活动。一个大楼梯把新建筑直接连接到中央公园广场和水景。新建筑群四周都有充足的停车设施。一条有盖的行人通道将这座大楼与塞蒂亚市的所有其他建筑物连接起来

The site is located fronting the central park to facilitate open air events in the park. A grand staircase links the new building directly unto the central park plaza and waterscapes. Ample car parking is provided for all around the new complex. A covered pedestrian link way ties this building up to all the other buildings in Setia City

 © H. Lin Ho

C.H.LinHo

SCCC 2包括5700平方米的免费栏目展览空间，可分为2个独立的大型展厅。这座73米×78米×9米高的大厅可以容纳5000人的宴席。大厅按比例排列，以达到最大的灵活性。

SCCC2 as it is known comprises 5,700 square meters of column free exhibition space divisible into 2 separate large halls. The 73m X 78m X 9m high grand hall can seat 5000 pax banquets.  The hall is proportioned for maximum flexibility.

 © H. Lin Ho

C.H.LinHo

Metamorphosis

这一新项目将使塞蒂亚市进入下一阶段的转型。这座始于2009年的城市将实现增长，在未来5年内将有许多新建筑投入使用。

This new project will take Setia City into the next phase of transformation. The city which first started in 2009 is set for growth with many new buildings coming on stream in the next 5 years.

 © H. Lin Ho

C.H.LinHo

这个大型建筑群的设计理念是基于大型毛虫的比例图案和颜色-基本绿色、黄色、白色和黑色。毛虫是蝴蝶生命转型的第一阶段。它经历了一个蜕变的过程，然后一只美丽的蝴蝶出现了。这一概念被解释为对整个结构的墙壁和屋顶进行整理，并将其纳入到空间的室内设计中。

The design concept for this large complex was based upon the scaled patterns and colour of a large caterpillar – basic green, yellow, white and black. Caterpillars are the first stage in the transformational life of a butterfly. It undergoes a process of metamorphosis after which a beautiful butterfly emerges. This concept was interpreted into the finishing of the entire wall and roof of the structure and carried into the interior design of the spaces too.

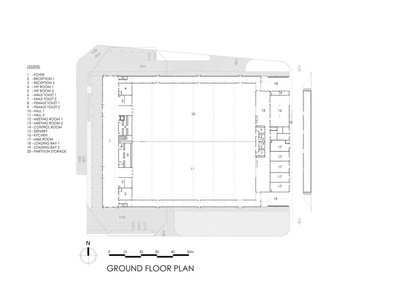

 Ground Floor Plan

这是一个快速的项目，只花了9个月就完成了，花费了3800万兰特。它于2016年11月主办了第一次活动。

This was a fast track project that took only 9 months to complete at a cost of RM38m. It hosted its first event in November 2016.

 © H. Lin Ho

C.H.LinHo

一个很大的走廊组成了入口门厅、大厅和功能前大厅，所有的游客都可以从这里下车和进入。从那里他们可以进入大厅。装载和存储空间都位于综合体的后方。

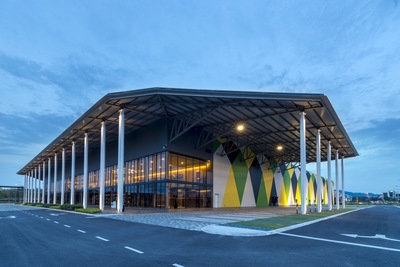

A large verandah way makes up the entry foyer, lobbies and pre-function halls from which all visitors get dropped-off and enter. From there they can gain access into the grand hall. Loading and storage spaces are all located to the rear of the complex.

 © H. Lin Ho

C.H.LinHo

大堂内设有厨房、餐饮亭和餐饮亭。大厅两侧有两条服务通道，作为服务通道和存储区域，构成了建筑群的重要服务脊柱。此外，还有户外活动和婚礼或花园派对的空间。

The halls and pre function are aptly served by catering kitchen, pantries and food and beverage kiosks in the foyer area. The grand hall has two service lanes running on its sides, functioning as service lanes and storage area and forms the vital service spine of the complex. In addition there is room for outdoor events and marquees for weddings or garden parties.

这座建筑基本上是一系列钢筋混凝土盒子，缝成了一个大型结构钢机库。钢结构采用预制结构，采用螺栓和螺母连接。屋面系统是一种集岩棉和硅化为一体的双层蒙皮屋面，既起到隔热隔音的作用，又有助于达到施工周期。在启动时铺设Zincalume Sanko高速甲板作为底层衬垫，允许地面上的工程同时进行。

The building is basically a series of reinforced concrete boxes slotted into a large structural steel hangar. The steel structure was prefabricated and features bolt and nut joints. The roof system is a double skin roof with rockwool and sisalation which not only serves as heat and sound insulation but also assists in achieving the construction period. Laying the Zincalume Sanko Speed Deck as bottom liner at the start allows works on ground to progress concurrently.

 © H. Lin Ho

C.H.LinHo

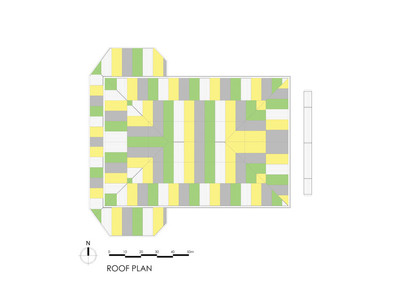

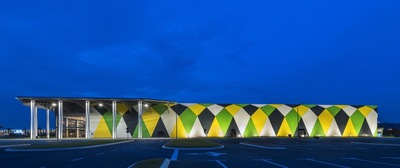

屋顶和墙面采用四种颜色：硫黄、维里迪安、白对开和木炭角黑，通过创建可识别的几何形状，模拟毛毛虫的有机图案，特别注意三维效果。由此产生的效果是一种动画幻象，如果不是这样的话，它将是一座平淡无奇的棚屋-这表明，适度的预算可以产生非凡的效果，只需一点创造力颜色选择通常是免费的。

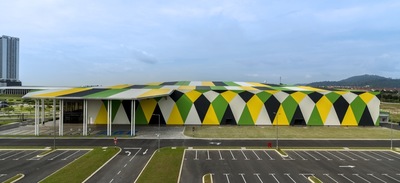

Roof and wall cladding were in four colors: Sulphur Yellow, Veridian, Off White and, Cape Charcoal Black to simulate the organic patterns of a caterpillar onto a simple box by creating a recognisable geometry, paying attention particularly on the three dimensional effect. The resulting effect is an animated illusion to what would otherwise have been a lacklustre shed - demonstrating that modest budgets can produce exceptional results with a little creativity … and colour choices are usually free.

 © H. Lin Ho

C.H.LinHo

Architects Archicentre

Location Setia Alam, Shah Alam, Selangor, Malaysia

Category Cultural Center

Architect in Charge Tan Loke Mun

Area 11795.0 m2

Project Year 2016

Photographs H. Lin Ho

Manufacturers Loading...
