Koniecznys Ark KWK Promes

2016-11-23 03:00

 © Olo Studio

C.Olo Studio

架构师提供的文本描述。这个情节的最高价值是一幅精彩的景色延伸开来。这个想法是让房子成为种植它的框架。最合适的建筑是一座完全开放的山景一层建筑，这给所有的内部同样的看法。

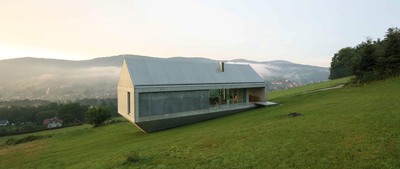

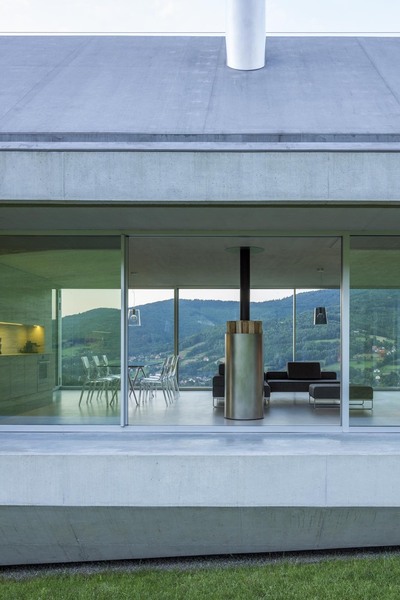

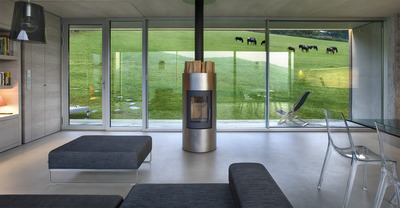

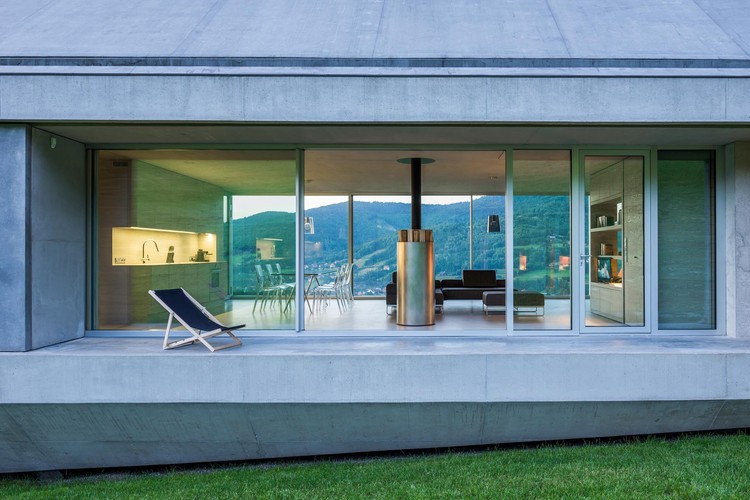

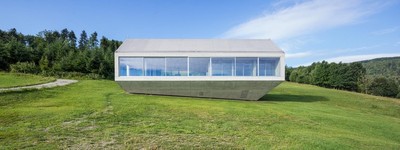

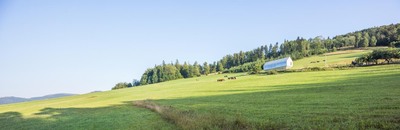

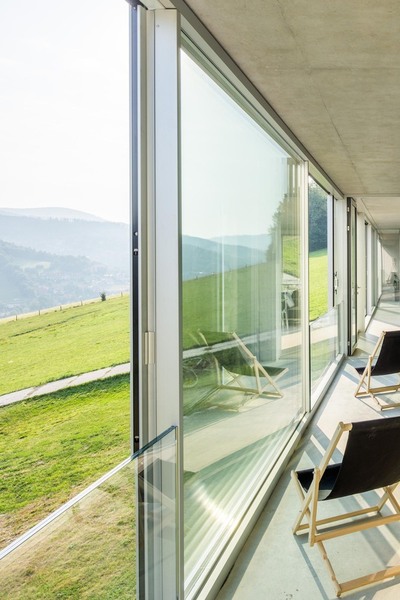

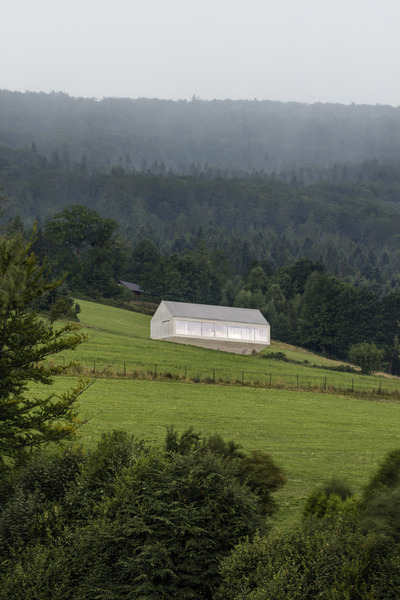

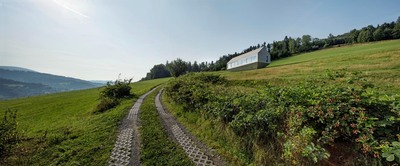

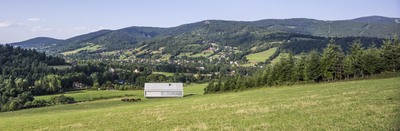

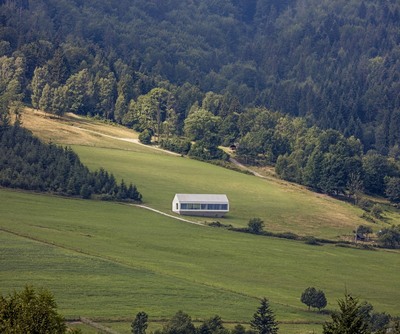

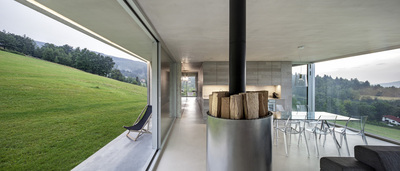

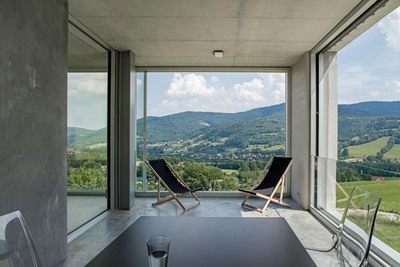

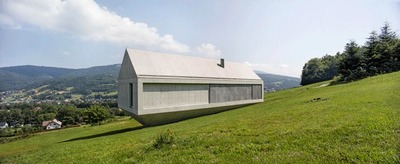

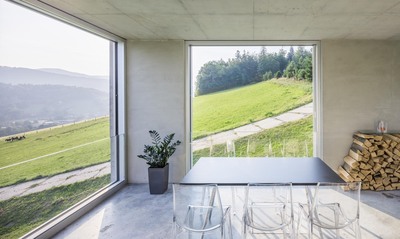

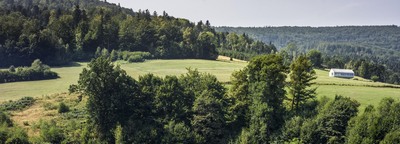

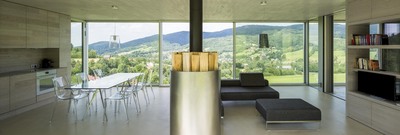

Text description provided by the architects. The highest value of the plot is a wonderful view stretching out. The idea was for the house to become its framework that crops it. The most appropriate building turned out to be a fully open on mountain landscape one-storey building, which gives the same view to all of the interiors.

因为这个阴谋位于一个绝对的荒野里，安全问题就出现了。这个解决方案变成了"捻线"的建筑，所以只有一个角落接触地面，其余的地方悬挂在山边。在此解决方案中，卧室所在的底层地板被拉到第一层的标高处。由于大楼里有很宽的玻璃开口，我的妻子要求我有效地关闭房子的入口侧。一个10米的墙壁和一个组合了楼梯和百叶窗的功能的吊桥出现了。

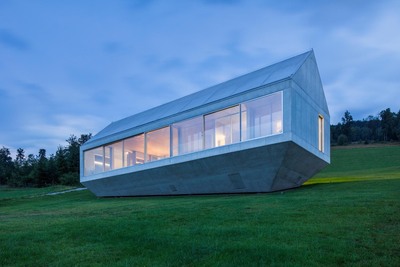

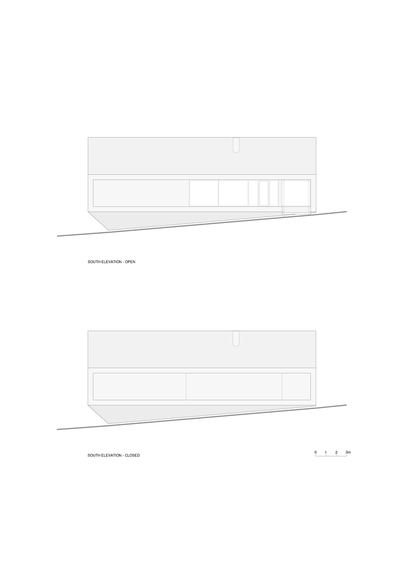

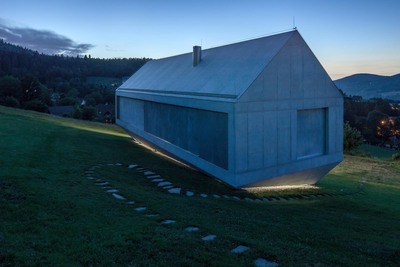

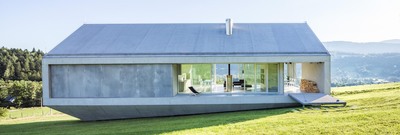

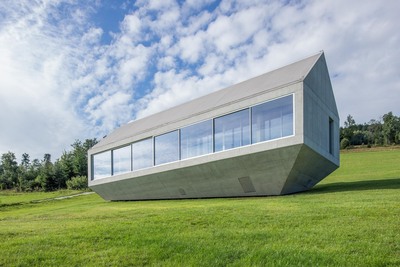

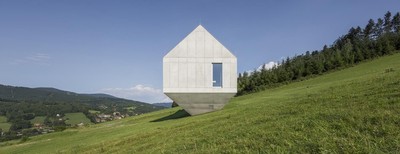

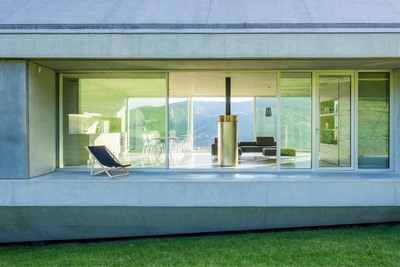

Because of the plot being located in an absolute wilderness a problem of security came out. The solution turned out to be "twisting" the building so as only its one corner touches the ground and the rest is hang over the edge of the hill. With this solution, part of the ground floor where the bedrooms were located was pulled up to the level of the first floor. Because of the fact that there are wide glass openings in the building, my wife asked me to effectivly close the entrance side of the house. A 10 meter wall and a drawbridge, which combines the function of stairs and a window shutter, appeared.

 © Jakub Certowicz

c.Jakub CerTowicz

 © Jakub Certowicz

c.Jakub CerTowicz

房子位于陡峭的斜坡上，其次是高风险的山崩，在波兰山区越来越频繁。至于限制底土的移动，房屋被当作一座桥梁，雨水在桥下自然流动。

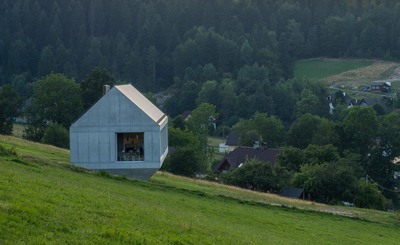

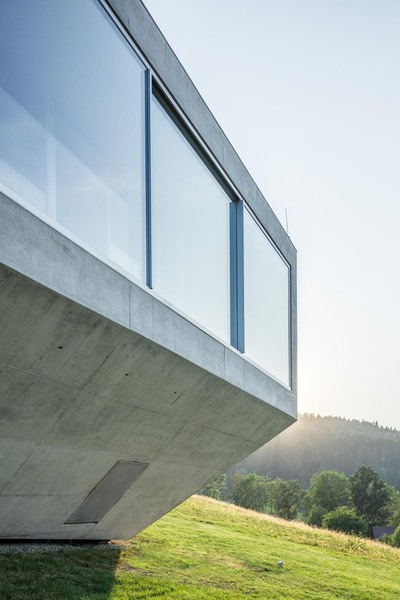

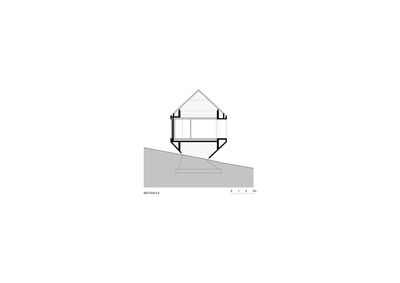

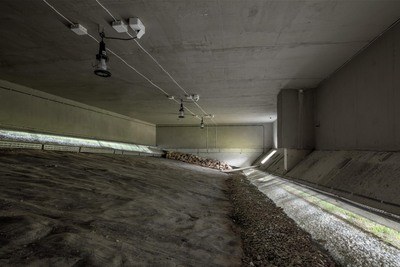

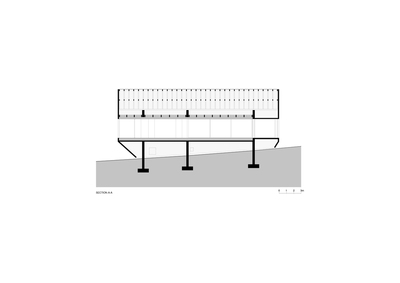

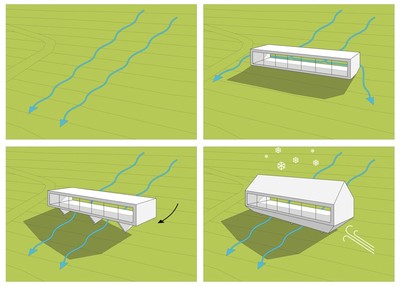

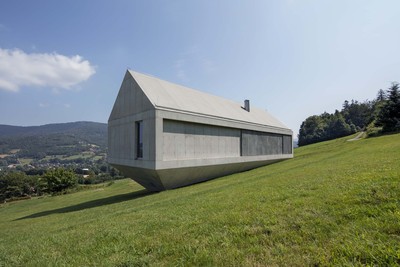

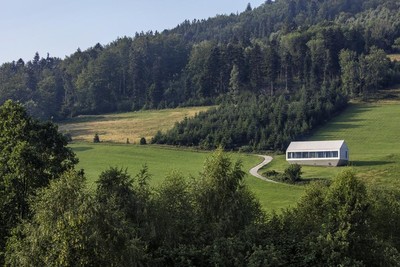

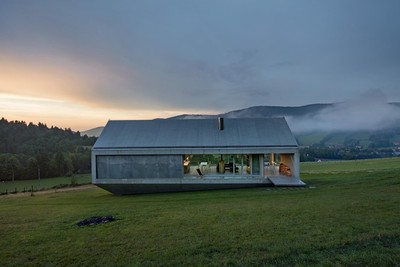

Location of the house on a steep slope, was followed by high risk of landslip, more and more frequent in polish mountains. As to limit the movement of the subsoil the house was treated as a bridge, under which rain water flows naturally.

 © Jakub Certowicz

c.Jakub CerTowicz

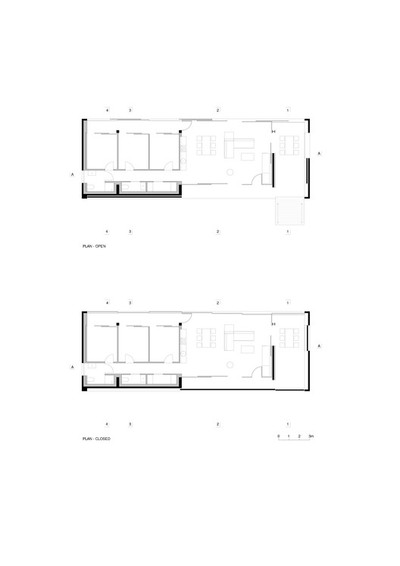

 Floor Plan

 © Jakub Certowicz

c.Jakub CerTowicz

山区景观的现实以及当地法律限制了山墙屋顶。房子的形式是一个典型的谷仓，矗立在三面薄薄的墙壁上。

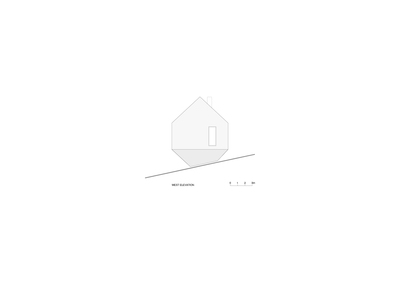

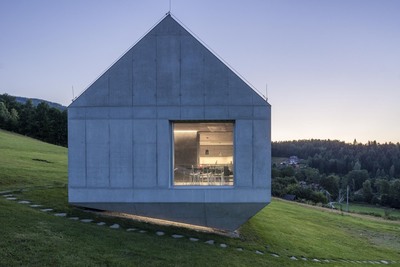

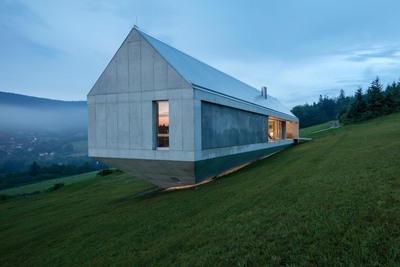

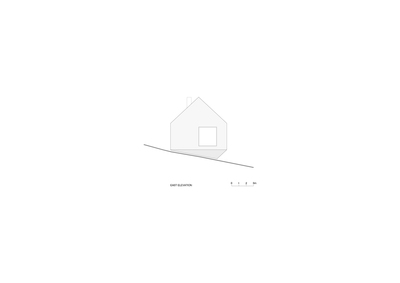

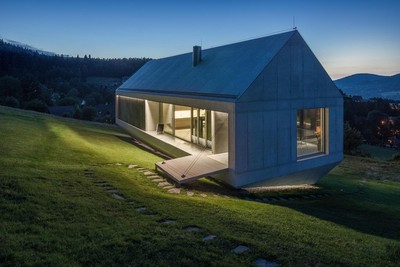

Realities of mountain landscape as well as the local law constrained a gable roof. House took the form of a typical barn standing on three thin walls

 Courtesy of Robert Konieczny

罗伯特·科尼克兹尼

 Courtesy of Robert Konieczny

罗伯特·科尼克兹尼

为了增强建筑物的刚性，墙被“倒置”屋顶的平面拉紧，稍微举过山丘。他们的倾斜增加了安全感。所以，我们基本上建造了一个有两个屋顶的房子来保护它不受水的侵袭，它开始在田野上漂浮着一条弧线。过了一段时间后，我意识到，为了不打扰这种印象，最好的花园设计将是缺乏它，最好的篱笆将是一个临时放牧围栏，最好的做法-少石头。与此同时，这座建筑被认为是廉价且易于建造的。这就是为什么我在从里面绝缘它的时候，混凝土结构变成了一个精致的高地。这就是我如何摆脱复杂的细节和完成，他们被取代的混凝土浇筑从当地的生产者。喷雾封闭式结构泡沫被证明是最佳的绝缘。它也是一个蒸汽屏障。

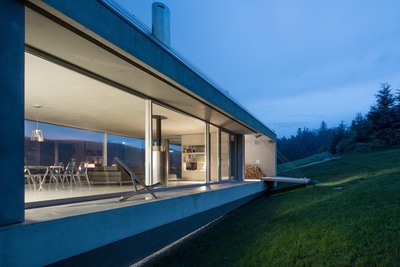

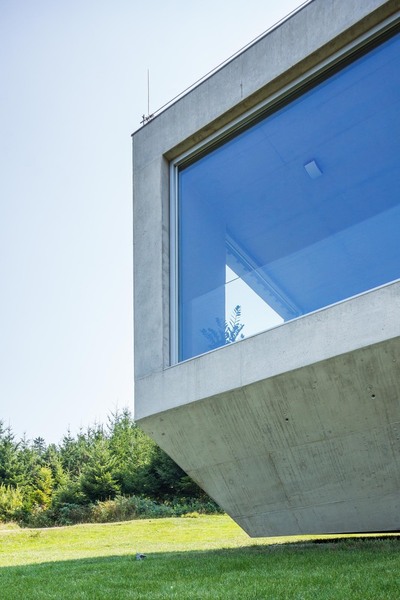

To give rigidity to the building the walls were tensed by the planes of the ''inverted" roof, slightly lifted over gound. Their incline increased the feeling of security. And so, we basically created a house with two roofs that protect it from water, it began to resamble an arc floating over the fields. After some time I realized, that in order not to disturb this impression, the best garden design would be lack of it, the best fence would be a temporary herding fence, the best approach - few rocks. In the same time the building was supposed to be cheap and easy to construct. That is why I deciced on insulating it from the inside, the concrete structure became an finnished elevation. This is how I got rid of complicated details and finish, they were replaced by poured concrete from a local producer. Sprayed closed-cell-structure foam turned out to be the optimal insulation. It is also a vapour barrier.
