The Breathing Wall Residence LIJO.RENY Architects

2016-03-15 20:00

 © Praveen Mohandas

(Praveen Mohandas)

架构师提供的文本描述。很难知道它是白天还是夜晚，或者是雨天还是阳光，而在客户先前肮脏的住所里，他们却渴望得到新的生命的延续！。

Text description provided by the architects. It was difficult to know if it was day or night or for that matter rain or sunshine, while inside the client’s previous dingy home that stood on this site and they craved for a new lease of life!

 © Praveen Mohandas

(Praveen Mohandas)

地块很窄，西边有一条同样狭窄的公共道路，北边是一条私人道路，南边是一栋紧邻边界的房子，后面是客户的兄弟住宅。虽然设计在可能的范围内，6x16mts，脚印为建筑物，这是很明显的中央通风量是必要的，以挽救客户的痛苦。

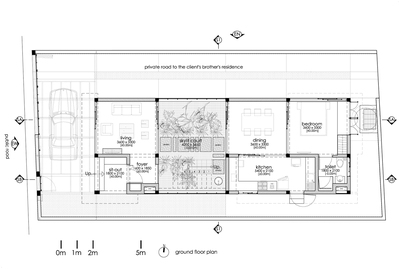

The plot was narrow with an equally tight public road to the west, a private road on the north, a house that abuts the boundary on the south and the client’s brother’s residence at the back. While designing within the possible, 6 x 16mts, foot print for the building, it was clear that a central ventilating volume was necessary to redeem the clients off their misery.

 © Praveen Mohandas

(Praveen Mohandas)

线性脚印分为两个东西海湾，3.3mts和1.8mts，每个功能空间按可能的逻辑顺序分配。这样达到的中心空间被指定为一个景观天窗中庭，其中有一个楼梯，将两个街区连接到东部和西部。然而，由于北方和南方都是开放的，因此有必要找到一种“墙”的解决办法，它是安全的、坚固的、能抵抗恶劣的热带天气的，而且是穿孔的，以方便急需的通风。“呼吸墙”，用corten钢，成为一个美感的解决方案，所有的功能问题所提出的情况。

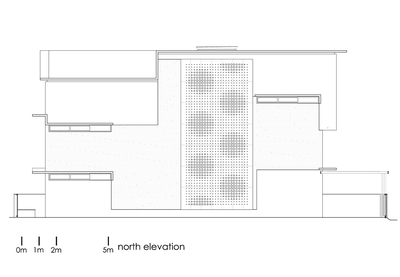

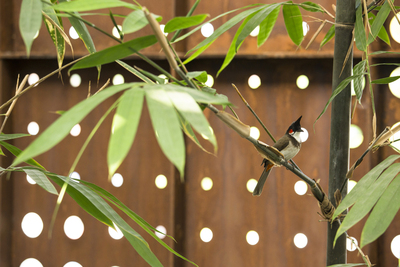

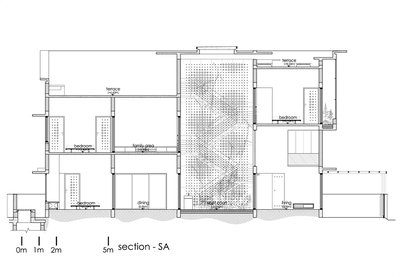

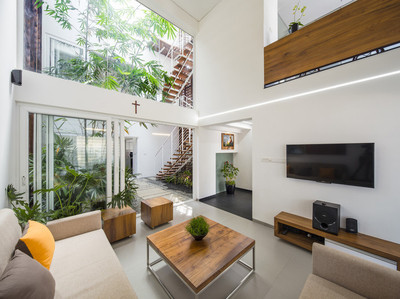

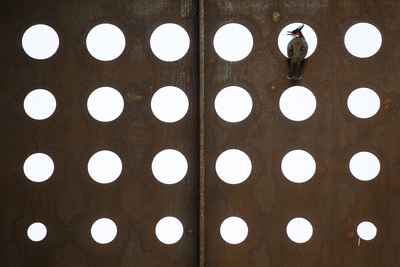

The linear foot print was divided into two east-west bays of 3.3mts and 1.8mts each to which functional spaces were allocated in the possible logical order. The central volume thus achieved was assigned as a landscaped skylight atrium with a stair that connected the two blocks to the east and west. However as the north and south was open, it was necessary to find a solution for a ‘wall’ that was secure, robust, resistant to the harsh tropical weather, perforated to facilitate the much needed ventilation. The ‘Breathing wall’, in corten steel, became an aesthetically pleasing solution to all the functional issues posed by the situation.

该项目的设计是作为狭小地块的原型而开发的。虽然由于场地条件的原因，该工程在南面和北面都有小的洞口，但完全有可能避免同样的情况，并通过将这些区域打开中央容积来通风。

The design of this project was developed as a prototype for narrow plots. Though by the virtue of the site condition, minor opening have been provided on the south and north in this project, it is entirely possible to avoid the same and ventilate those areas by opening them into the central volume.
