Barbaros House Onurcan Çakır
2016-01-01 02:00
架构师提供的文本描述。BarbarosHouse位于İzmir的Urla的Barbaros村。在建筑工地的上东侧,伊兹密尔理工学院的技术园区位于。在设计房子的时候,主要的想法是在自然环境中实现一个安静的居住空间。该工程采用局部石材和钢筋混凝土作为墙体和结构体系。这两种材料表面密度都很高,因此具有良好的隔声性能。
Text description provided by the architects. Barbaros House is located in Barbaros Village of Urla, İzmir. On the upper east side of the building site, the techno park area of Izmir Institute of Technology is located. While designing the house, the main idea was to achieve a silent living space in a natural environment. Local stone and reinforced concrete were used for the walls and structural system of this project. Both materials have high surface densities and thus provide good acoustic insulation.
© Onurcan Çakır
ı
Floor Plan
© Onurcan Çakır
ı
这间带有裸露混凝土外墙的房间有两扇窗户和两扇门,因为它是专为休息和睡觉而设计的,没有任何噪音。我们已采取特别的声学预防措施,以防止外界发出任何不必要的声音。整个房屋的外墙由两层组成,中间有保温材料,以便有隔热和隔音。石墙是由当地石匠建造的,这提供了与村里其他建筑相似的正面形象。

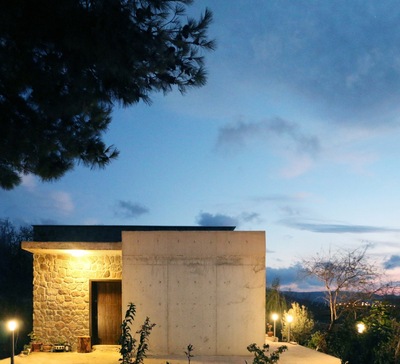

The room with the exposed concrete façade has two windows and two doors, because it is designed especially for resting and sleeping without any noise. Special acoustic precautions have been taken to prevent any unwanted sound from outside. Outer walls of the whole house consist of two layers with insulation material between them, in order to have thermal and acoustic insulation. Stone walls were built by local stonemasons, and this provides a similar façade image with other buildings in the village.
当地的材料是可持续的,因为它们具有环境和经济优势。窗口开口的大小和形状是通过考虑自然事件来设计的。北面有空墙,东面有薄薄的水平/垂直缎带窗,预计东北方向会刮冷风。一棵柳树在西面的大开口前提供夏季的阴凉处,冬天让阳光从叶子中落下,这对室内的热舒适性产生了积极的影响。
Local materials are sustainable as they have environmental and economic advantages. Sizes and shapes of window openings were designed by taking natural events in consideration. There are blank walls on the north and thin horizontal / vertical ribbon windows on the east façade, as cold winds from northeast are expected. A willow tree in front of the large opening on the west façade provides shade in summers and lets sunlight in by dropping its leaves in winter, which affects the inner thermal comfort positively.
© Ersen Corekci
c.Ersen Corekci
