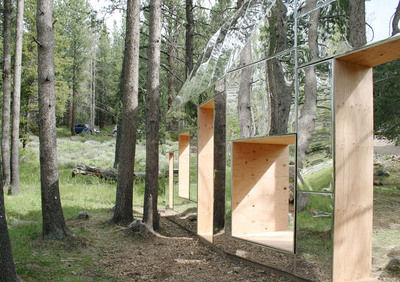

Courtesy of stpmj

由stpmj提供

架构师提供的文本描述。“看不见的谷仓”是一种特定于网站的设计方案，它通过在结构命题上投射景观来重新结合场地的景观。谷仓形状的木结构在其表面铺上反光膜.这个镜子完成的愚蠢被放置在树林的中央，反映了它周围的环境：不同种类的树木和植物，天空，地面和场地的季节性变化。在其封闭的小树林中反映出的愚蠢，使这个结构能够顺利地被大自然同化。穿透愚蠢的切口可以让游客进入、进出和绕过建筑。“看不见的谷仓”是一种愚蠢的行为，它在自然界中失去了人造建筑的存在，却为用户提供了新颖的体验和互动。

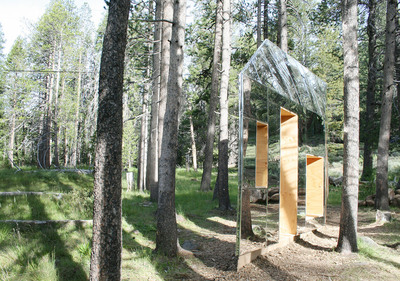

Text description provided by the architects. Invisible Barn is a site-specific design proposal that re-contextualizes the landscape of the site by projecting the landscape on the structural proposition. A barn shaped-wooden structure is sheeted with reflective film on its surfaces. This mirror-finished folly is placed in the middle of the grove and reflects its surrounding environment: different species of trees and plants, sky, ground and the seasonal changes of the site. The reflection of the folly within its enclosed grove allows the structure to smoothly assimilate into the nature. The incisions that penetrate through the folly allow visitors to maneuver in, out, and around the structure. Invisible Barn is a folly that loses its man-made architectural presence in nature but adds novel experience and interaction to the users.

 Ground Level Plan

地面平面图

看不见的谷仓被放置在小树林的核心上，它位于遗址的通道上。在树林的周长周围，有十几棵大小相似、间距相等的树。由于它的大小和树木的位置相似，在镜面上的投影类似于人们在没有愚蠢的情况下会看到的东西。这种视觉错觉模糊了愚昧和站点之间的知觉边界，让愚蠢在自然界中消失和看不见，重建了网站的景观。

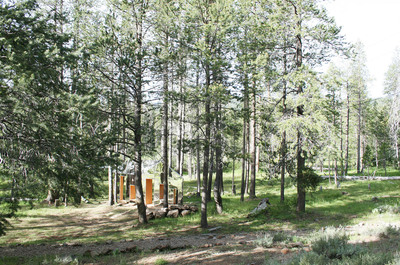

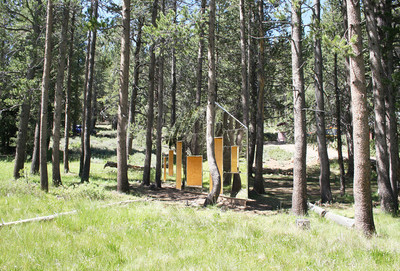

Invisible Barn is placed in the core of the grove which lies on the passageway of the site. Around the circumference of the grove there are a dozen of trees in similar size and equal spacing from one another. Due to the similarity of its size and placement of the trees, the projection on the mirrored surface is similar to what people would see without the folly. The visual illusion that blurs the perceptual boundary between the folly and the site, allows the folly to be disappeared and invisible in nature, reconstructing the landscape of the site.

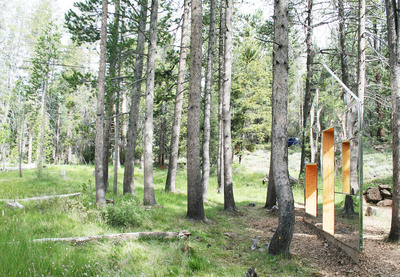

 Courtesy of stpmj

由stpmj提供

谷仓的形状是一个瘦长的平行四边形，以避开茂密的树木。斜面的愚蠢有各种大小和深度的开口，这意味着窗户和门。这些在愚蠢的信封上，反光膜和胶合板框架的开口上的固体和空洞，突出了开口.这创造了一个视觉技巧，框架开口是漂浮在空气中的树林。通过这些孔洞，游客们感受到了真实景观和镜像景观之间的微妙差异，了解了小树林和其他艺术设施在遗址上的深度。孔洞可能意味着观看框架、通道和长凳，参观者的目的是与他们进行身体和视觉上的互动。另外，在200~400 nm波长范围内，反射膜为镀铝聚酯膜，其紫外反射率可达90%以上。虽然人类不认识到这种紫外线反射，但它对鸟类是可感知的，以防止它们碰撞到结构上。

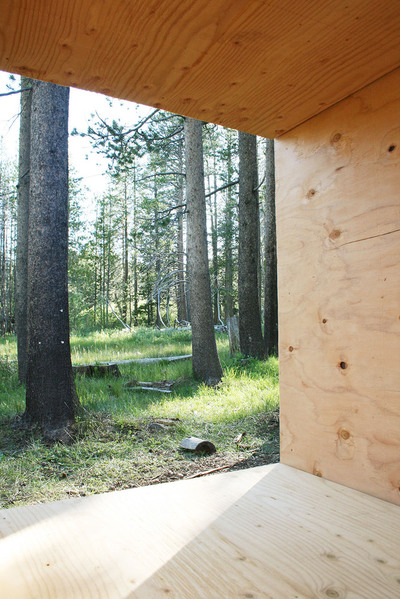

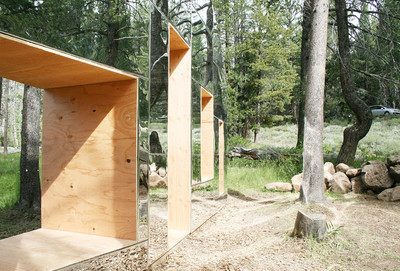

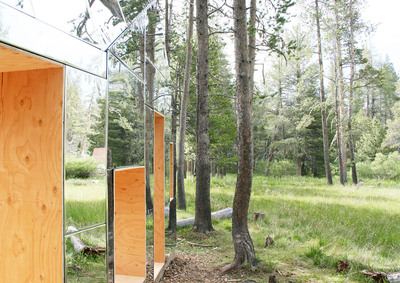

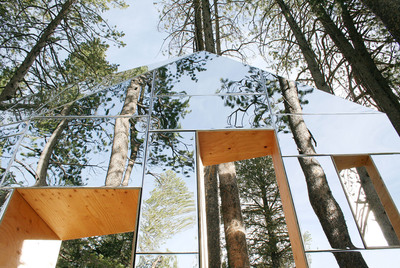

The barn is shaped as a skinny and long parallelogram to elude the dense trees. The beveled folly has openings with various sizes and depths that connote windows and doors. These solid and void on the folly’s envelope, reflective film and plywood-framed opening, accentuate the openings. This creates a visual trick that the framed openings are floating on air in the grove. Through these apertures visitors perceive the subtle differences between the real and the mirrored landscape, understanding the depth of the grove and other art installations over the site. The apertures may suggest viewing frames, passages, and benches and visitors are intended to interact physically and visually with them. In addition the reflective sheathing is aluminized polyester film which has more than 90% of UV reflectivity in the range of 200-400nm wavelength. Though human does not recognize this UV reflection but it is perceivable to birds so that prevents them from colliding onto the structure.

 Exploded Isometric

爆炸等距

该结构是由2x4木钉和护套，其中的米拉镜片是表面。木框架片与埋在地下的混凝土基础上经压力处理的木墩相连。提出了一种既有现场又有现场外的混合施工方法.预制墙壁、地板和胶合板开口框架可以由两三个人移动到组装组件的现场。

The structure is comprised of 2x4 wood studs and sheathing where the mylar mirror film is surfaced. Wood framed piece is connected to pressure treated wood pier on concrete footing buried underground. A hybrid construction method with on and off-site is suggested. Prefabricated walls, floors and plywood opening frames can be moved by two or three people onto the site where the components are assembled.

 Courtesy of stpmj

由stpmj提供

在雕塑和建筑的交汇处，无形的谷仓失去了其自然的建筑形态，但通过这两个学科之间的材料和建筑技术的重叠，鼓励游客与之互动。作为一种静态的结构，愚蠢的人利用它的物质性和场地背景来绘制一个从现有景观中衍生出来的新场景。当人们开始移动，走向和在愚蠢的内部，用户将慢慢识别在树林中的一个空间，反射，镜子，和动画的景观公园。

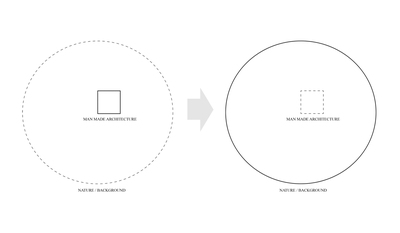

At the intersections between sculpture and architecture, Invisible Barn loses its architectural shape in nature but encourages visitors to interact with it through overlapping in materials and building techniques between the two disciplines. As a static structure, the folly uses its materiality and the site context to draw a new scene derived from the existing landscape. As people begin to move away, toward and within the folly, the users will slowly recognize a space within the grove that reflects, mirrors, and animates the landscape of the park.

Architects stpmj

Location Sagehen Creek Field Station, Tahoe National Forest, 11616 Sage Hen Road, Truckee, CA 96161, United States

Category Barn

Area 72.0 ft2

Project Year 2015
