Villa SR Reitsema and Partners Architects
2015-01-12 01:00
架构师提供的文本描述。当旧房子被保存下来时,往往是因为它们的可回收性。他们有高高的天花板,日光,大房间和宽阔的门。但还有一个更重要的原因我们不拆除它们。我们喜欢他们,因为他们的建筑很好,也因为他们是用漂亮的材料做的。保护你的房子,或者做一个长期价值很高的新房子,这样你的房子就更环保了。
Text description provided by the architects. When older houses are preserved, it is often because of their recyclability. They have high ceilings, daylight, large rooms and wide doors. But there is one more important reason why we don’t demolish them. We love them, because their architecture is good and because they are made of beautiful materials. Preserve your house, or make a new one with a high long term value, and you make your house more environmentally friendly.
© Ronald Tilleman
罗纳德·蒂尔曼
这对50多岁的夫妇的孩子已经离家出走,他们的客户们最初觉得他们在Rijssen新买到的梦想网站上的别墅应该是350平方米。尽管如此,在最初的设计头脑风暴之后,他们的第一个决定是把房子的面积减半。有了一个紧凑的装置,就可以优先考虑好的材料和节能的解决方案,超过了平方米的数量。
The clients, a married couple in their fifties whose children have left home, felt initially that their Villa on the newly acquired dream site in Rijssen should be 350 m2. Nevertheless, after the initial design brainstorm, their first decision was to halve the desired size of the house. With a compact set-up, priority could be given to good materials and energy-saving solutions over the number of square metres.
设计面对美丽的风景,别墅SR简单和自然地捕捉景观作为一个大画框。它这样做,不仅对它的居民,也为过路人,连接周围的景观和邻里。

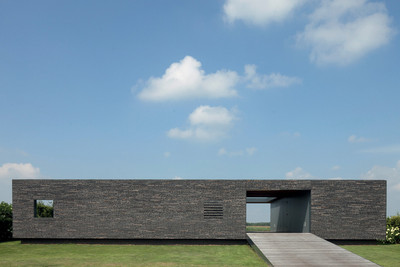

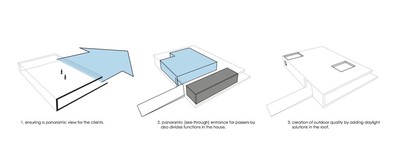

Designed to face its beautiful view, Villa SR simply and naturally captures the landscape as a large picture frame. It does so, not only for its residents, but also for passers-by, connecting the surrounding landscape with the neighborhood.
© Luuk Kramer
卢克·克雷默
在整个房子的宽度之上,悬空提供了一个遮荫的夏季露台。第二个露台在砖厂̧ADE后面的露台上,是早上早餐的理想选择。车库的李构成了一个理想的额外的晚间露台。一个滑动的门使它有可能关闭远离街道的空间,同时提供避风挡雨的地方。

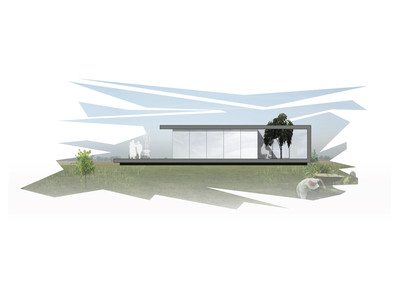

The overhang provides a shaded summer terrace over the full width of the house. A second terrace in the patio behind the brick façade is ideal for breakfast in the morning hours. The lee of the carport forms an ideal additional evening patio. A sliding door makes it possible to close the space off from the streets, while providing shelter from the wind.
由于建筑工程师的参与已经处于早期阶段,设计团队设法保证了对景观的最大透明度。仅三个100毫米墙和三个60毫米直径铬柱支撑混凝土屋顶。提供开放的平面图,宽的门,和最大的日光,建筑物的灵活性是优化的。

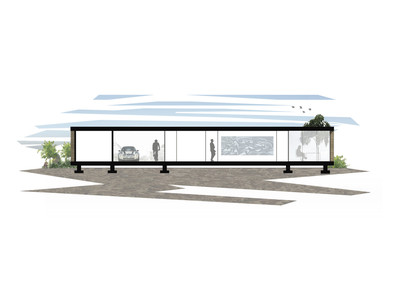

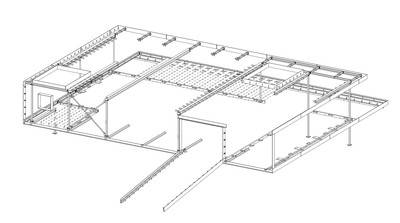

By involving the construction engineer already on a very early stage, the design team managed to guarantee maximum transparency towards the landscape. Solely three 100 mm walls and three 60 mm diameter chrome columns support the concrete roof. Offering an open floor plan, wide doors, and maximum daylight the buildings flexibility is optimized.

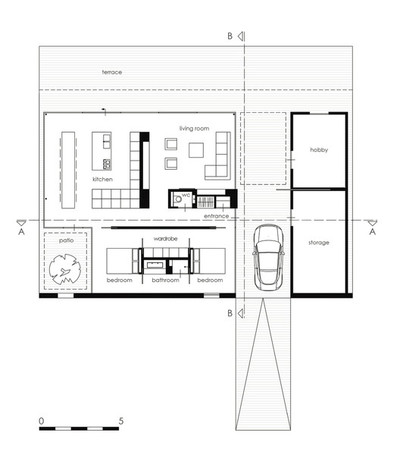

Floor Plan
要求砖供应商添加黄色粘土和烧砖非常接近火,我们能够创造丰富的颜色和偶尔的釉面效果,提供了一个当地产品的新解释。
Asking the brick supplier to add yellow clay and to fire the bricks very close to the fire, we were able to create a richness of colors and occasional glazed effects, offering a new interpretation of a local product.
在设计的鼓舞下,父亲和儿子-都是经验丰富的木匠-自己建造了这座别墅。就个人而言,他们致力于非常准确的执行,同时激励协作者进一步提高他们的性能。
Encouraged by the design, father and son – both experienced carpenters – built the villa themselves. Personally involved they were committed to very accurate execution while inspiring the collaborators to improve their performance further.
© Ronald Tilleman
罗纳德·蒂尔曼
工作的可持续方面
Sustainable Aspects of the Work
精力充沛地将紧凑的结构与高质量的隔热材料(包括绿色屋顶、热泵、低温地板加热系统、冷却天花板和太阳能电池板)结合起来,最大限度地减少了能源消耗。同时,选择设计精良的解决方案使设计优化成为可能,在施工过程中几乎不会产生任何浪费。
Energetically, by combining the compact set-up with high quality thermal insulation, including a green roof, a heat pump, a low temperature floor heating system, a cooling ceiling and solar panels, energy consumption is minimized. At the same time, opting for well- designed solutions made a design optimization possible to such extent that hardly any waste was produced during the construction process.
© Ronald Tilleman
罗纳德·蒂尔曼
从社会上看,别墅与景观的联系,无论是在组织上还是在物化方面,都已被证明在类似地点发挥了模范作用。提供景观,别墅的形式增加了其周围社区的公共空间的质量。客户的合作设计和建造,他们的加强参与,确保细节成为高质量和非常精确的建造。
Socioculturally, the Villa’s connection with the landscape, both in organization as in materialization, has already proven to play an exemplary role for similar locations. Offering a view on the landscape, the form of the Villa adds quality to the public space of its surrounding neighborhood. Cooperatively designed and built by the clients, their intensified engagement ensured that the details became high quality and were built very precisely.
© Luuk Kramer
卢克·克雷默
经济上,该项目的长期成本范围设计战略,引导别墅SR是一个鼓舞人心的例子,可持续的建筑,也在可行性方面。
Economically, the project’s long-term cost-scope design strategy, leads Villa SR to be an inspiring example of sustainable architecture, also in terms of feasibility.
