Heliópolis Social Housing Biselli Katchborian Arquitetos
2014-08-15 01:00
架构师提供的文本描述。对于圣保罗市来说,这是一个难得的机会,与世隔绝的塔楼建筑模式被传统的欧洲城市街区模式所取代,建筑占据了周边,并将内部庭院与公共通道连接起来,这意味着街区居民可以休闲。

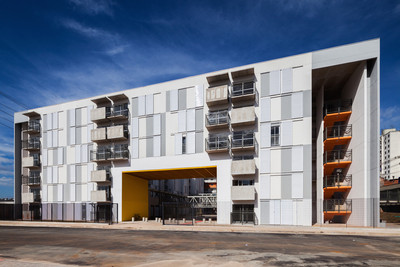

Text description provided by the architects. In a rare opportunity for the city of São Paulo, the isolated tower architectural model is replaced by the traditional European urban block model, with the buildings occupying its perimeter and conforming an inner courtyard with public access, meant for the leisure of the block`s inhabitants.
地形图被考虑在内,这意味着最大限度地增加公寓的数量(420个单元,分为两种类型)。根据城市立法,不同级别的接入点允许8层高的建筑,不需要电梯。这些接入点符合该区块的有盖休闲空间。这些天梯,其金属结构将它们与建筑物的其他部分隔开,将建筑物连接在与接入点相同的水平上。

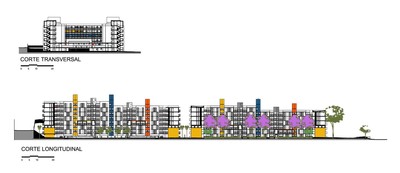

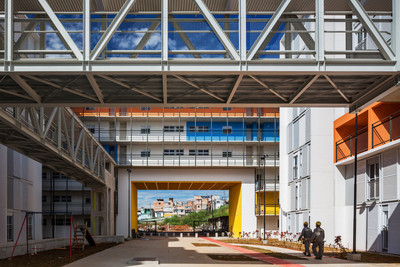

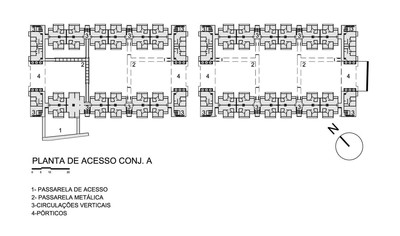

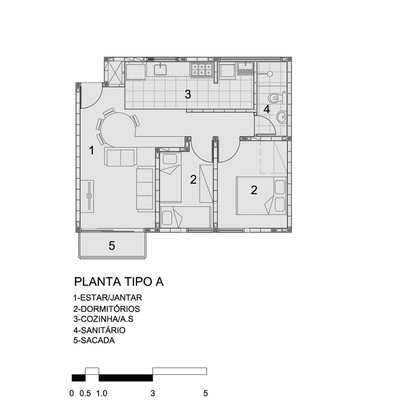

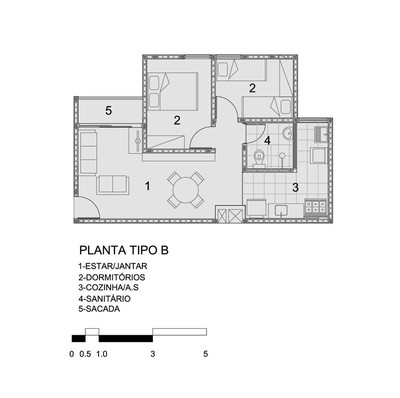

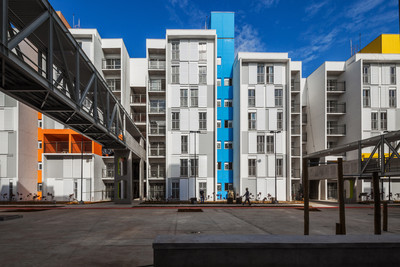

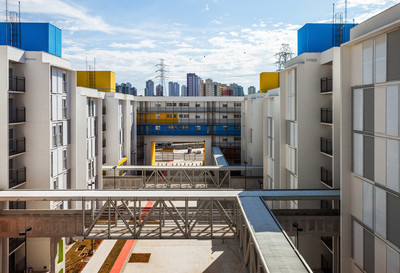

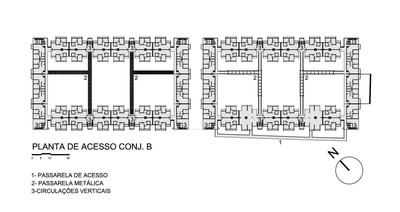

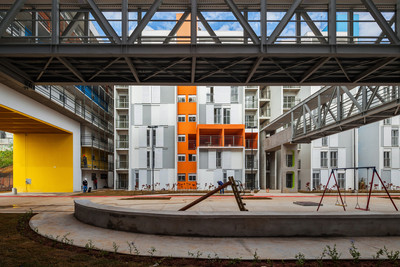

The site topography is taken in account, meant to maximize the apartment’s number (420 units split in two types). The different level access points permit a 8 level high construction without need of elevators, in conformity with urban legislation. Such access points conforms the covered leisure spaces of the block. The skywalks, whose metallic structure sets them apart of the rest of the building, connect the buildings in the same level as the access points.
大部分建筑采用了结构砌体体系,但在院落入口处采用钢筋混凝土。这套公寓的分布和颜色的使用使建筑物在视觉上显得与众不同,同时又不失去整个街区的概念。(鼓掌)

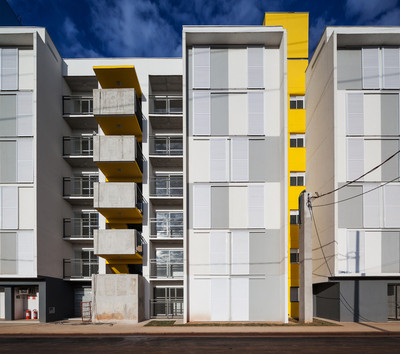

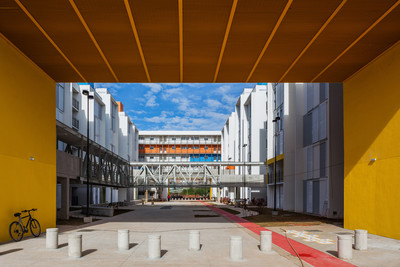

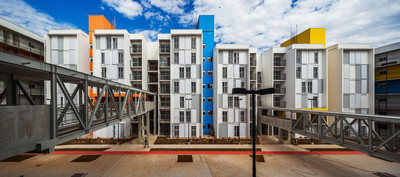

The building system of structural masonry has been used on most of the building, but on the entrance of the courtyards reinforced concrete has been employed. The apartment`s distribution and the use of colors set visually the buildings apart, without losing the notion of the whole block.
© Nelson Kon
(Kon)
该项目已在圣保罗市政厅贫困地区再城市化计划内通过住房秘书完成。
The project has been accomplished within the Sao Paulo City Hall Program for Poor-area Re-Urbanization, through the Secretary of Housing.
© Nelson Kon
(Kon)
